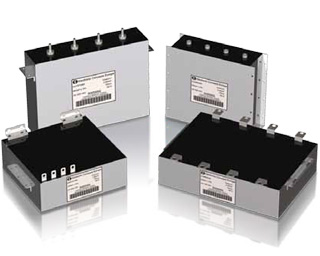

UL9 Series | Film Capacitors - Electronic Concepts Inc.

Key Features

Long Life > 100,000 hours
Cost effective
Low ESL & ESR
High RMS current capability
Flexible construction
RoHS compliant

Optimized for DC Power Conversion

The UL9 series uses the company’s proven Unlytic® technology which significantly reduces weight and size optimized for DC power conversion. Additionally, the product incorporated traditional dry film “self-healing” properties, providing long life and reliability.

Additional Information

Specifications

Capacitance Range

380uF to 17,100uF

Capacitance Tolerance

Standard tolerance is ±10%.
Tolerances of ±5% and ±20% are available on request.

Operating Temperature Range

-40°C to +85°C (+105°C upon special request)
Hot Spot Temperature Calculation: H.S.= Tamb + (I2 x ESR) x Rth.
Failure Rate: 100FIT

Voltage Range

700VDC to 3000VDC

Enclosure Construction

Metallized Polypropylene encapsulated in aluminum housing.
Bus bar electrical mounting for low ESL & ESR.

Quality Control

Capacitors are tested 100% for:
- Capacitance
- Tolerance
- Dissipation Factor
- Dielectric withstanding voltage
- Insulation Resistance
- Equivalent Series Resistance (ESR)

*Process and inspection data are maintained on file and available on special request.

Parameter	Method	Condition
Vibration	204	D
Shock	213	I
Humidity	106	–
Thermal Shock	107	A
Life	108	F

Data

EC PART NUMBER	CAP µF	VDC	"X" (mm)	"Y" (mm)	"Z" (mm)	ESR mOhms	ESL nH	Fres kHz	I PEAK kAMPS	dv/dt (V/µs)	lrms AMPS	Rth °C/W


UL9_BE0688K	6800	700	95	330	320	0.15	<30	11.1	44	6.5	300	0.70
UL9_BE0928K	9200	700	120	330	320	0.20	<30	9.6	44	4.8	300	0.75
UL9_BE1388K	13800	700	120	330	470	0.15	<30	7.8	66	4.7	400	0.50
UL9_BE1718K	17100	700	145	330	470	0.20	<30	7.0	66	3.8	400	0.55
UL9_BJ0448K	4400	900	95	330	320	0.20	<30	13.8	70	16	300	0.65
UL9_BJ0608K	6000	900	120	330	320	0.22	<30	11.8	72	12	300	0.70
UL9_BJ0908K	9000	900	120	330	470	0.16	<30	9.6	100	11	400	0.45
UL9_BJ1148K	11400	900	145	330	470	0.20	<30	8.6	100	9	400	0.50
UL9_BM0308K	3000	1100	95	330	320	0.25	<30	16.8	60	20	300	0.65
UL9_BM0408K	4000	1100	120	330	320	0.31	<30	14.5	60	15	300	0.70
UL9_BM0608K	6000	1100	120	330	470	0.20	<30	11.8	90	15	400	0.45
UL9_BM0758K	7500	1100	145	330	470	0.23	<30	10.6	90	12	400	0.50
UL9_BN0258K	2500	1200	95	330	320	0.28	<30	18.4	55	22	300	0.65
UL9_BN0348K	3400	1200	120	330	320	0.34	<30	15.8	56	16	300	0.70
UL9_BN0518K	5100	1200	120	330	470	0.22	<30	12.9	84	16	400	0.45
UL9_BN0658K	6500	1200	145	330	470	0.26	<30	11.4	84	13	400	0.50
UL9_BT0148K	1400	1600	95	330	320	0.40	<30	24.5	40	28	250	0.65
UL9_BT0198K	1900	1600	120	330	320	0.47	<30	21.0	40	21	250	0.70
UL9_BT0288K	2800	1600	120	330	470	0.32	<30	17.4	60	21	350	0.45
UL9_BT0368K	3600	1600	145	330	470	0.37	<30	15.3	60	17	350	0.50
UL9_CA0907K	900	2000	95	330	320	0.55	<30	30.6	34	37	220	0.65
UL9_CA0128K	1200	2000	120	330	320	0.63	<30	26.0	32	27	220	0.70
UL9_CA0188K	1800	2000	120	330	470	0.42	<30	21.7	48	26	300	0.45
UL9_CA0238K	2300	2000	145	330	470	0.48	<30	19.2	48	21	300	0.50
UL9_CD0387K	380	3000	95	330	320	0.60	<30	47.1	11	28	170	0.70
UL9_CD0527K	520	3000	120	330	320	0.78	<30	40.3	11	21	170	0.60
UL9_CD0787K	780	3000	120	330	470	0.52	<30	32.9	16	20	240	0.40
UL9_CD0997K	990	3000	145	330	470	0.64	<30	29.2	16	16	210	0.50
