Film Capacitors

From small chip size capacitors to large building blocks

Home > Film Capacitors

Electronic Concepts Inc. is a recognized leader in film capacitor design and manufacture. Explore our line of film capacitors ranging from small chip-size capacitors to large building blocks. At ECI, we have the flexibility to design any film capacitor with unusual specs. To get a quote on custom film capacitors, head over to our design center.

Find Your Film Capacitor

Filter your search query using the drop down boxes below.

Our Products

3MP Series

Operating Temperature Range: -55°C to +85°C | Capacitance Range: 20µF to 325µF

Voltage Range VAC: 300VAC to 900VAC | Voltage Range VDC: 450VDC to 1350VDC

Application: AC Filter

5HT Series

Operating Temperature Range: -55°C to +175°C | Capacitance Range: 0.010µF to 0.100µF

Voltage Range VAC: 230VAC | Voltage Range VDC: 400VDC

Application: Inverter

5MC Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 1µF to 50µF

Voltage Range VDC: 50VDC to 100VDC

Application: Coupling/ Decoupling, High Temperature (>105°C), DC Ripple Filter

5ME Series

Operating Temperature Range: -40°C to +85°C | Capacitance Range: 1µF to 200µF

Voltage Range VDC: 30VDC to 400VDC

Application: Coupling/ Decoupling, DC Ripple Filter

5MP1 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 1µF to 50µF

Voltage Range VDC: 100VDC to 400VDC

Application: Coupling/ Decoupling, Snubber, DC Ripple Filter

5MP2 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 0.47µF to 10µF

Voltage Range VAC: 230VAC to 460VAC | Voltage Range VDC: 400VDC to 2000VDC

Application: Coupling/ Decoupling, Snubber, DC Ripple Filter

5MPA Series

Operating Temperature Range: -55°C to +85°C | Capacitance Range: 2µF to 300µF

Voltage Range VAC: 300VAC to 900VAC

Application: AC Filter

5MPF Series

Operating Temperature Range: -40°C to +85°C | Capacitance Range: 10µF to 250µF

Voltage Range VAC: 300VAC to 900VAC | Voltage Range VDC: 450VDC to 1350VDC

Application: AC Filter

5PT Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 0.010µF to 0.100µF

Voltage Range VAC: 230VAC to 460VAC | Voltage Range VDC: 400VDC to 1500VDC

Application: Snubber, Resonant Power, DC Ripple Filter

ECR Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 0.0010µF to 1µF

Voltage Range VDC: 50VDC to 250VDC

Application: High Temperature (>105°C), DC Ripple Filter, Frequency Discriminating

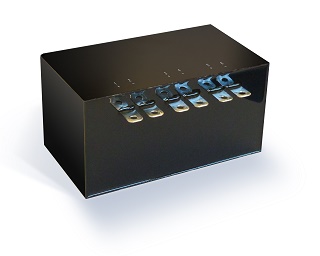

EV/HEV Series

Operating Temperature Range: -55°C to +110°C | Capacitance Range: 130µF to 1000µF

Voltage Range VDC: 450VDC to 1000VDC

Application: DC Link, Energy Storage, Inverter

HECR Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 0.0010µF to 1µF

Voltage Range VDC: 30VDC to 300VDC

Application: High Temperature (>105°C), DC Ripple Filter, Frequency Discriminating

HT1 Series

Operating Temperature Range: -55°C to +150°C | Capacitance Range: 0.12µF to 2.2µF

Voltage Range VDC: 600VDC to 2400VDC

Application: Coupling/ Decoupling, Snubber, Resonant Power, High Temperature (>105°C)

LH3 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 30µF to 1600µF

Voltage Range VDC: 500VDC to 2400VDC

Application: DC Ripple Filter, DC Link, Energy Storage, Inverter

MC Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 0.01µF to 10µF

Voltage Range VDC: 100VDC to 400VDC

Application: High Temperature (>105°C), DC Ripple Filter, Frequency Discriminating

MC0 Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 0.0010µF to 20µF

Voltage Range VDC: 100VDC to 400VDC

Application: High Temperature (>105°C), DC Ripple Filter, Frequency Discriminating

MC12 Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 0.0010µF to 20µF

Voltage Range VDC: 100VDC to 400VDC

Application: High Temperature (>105°C), DC Ripple Filter, Frequency Discriminating

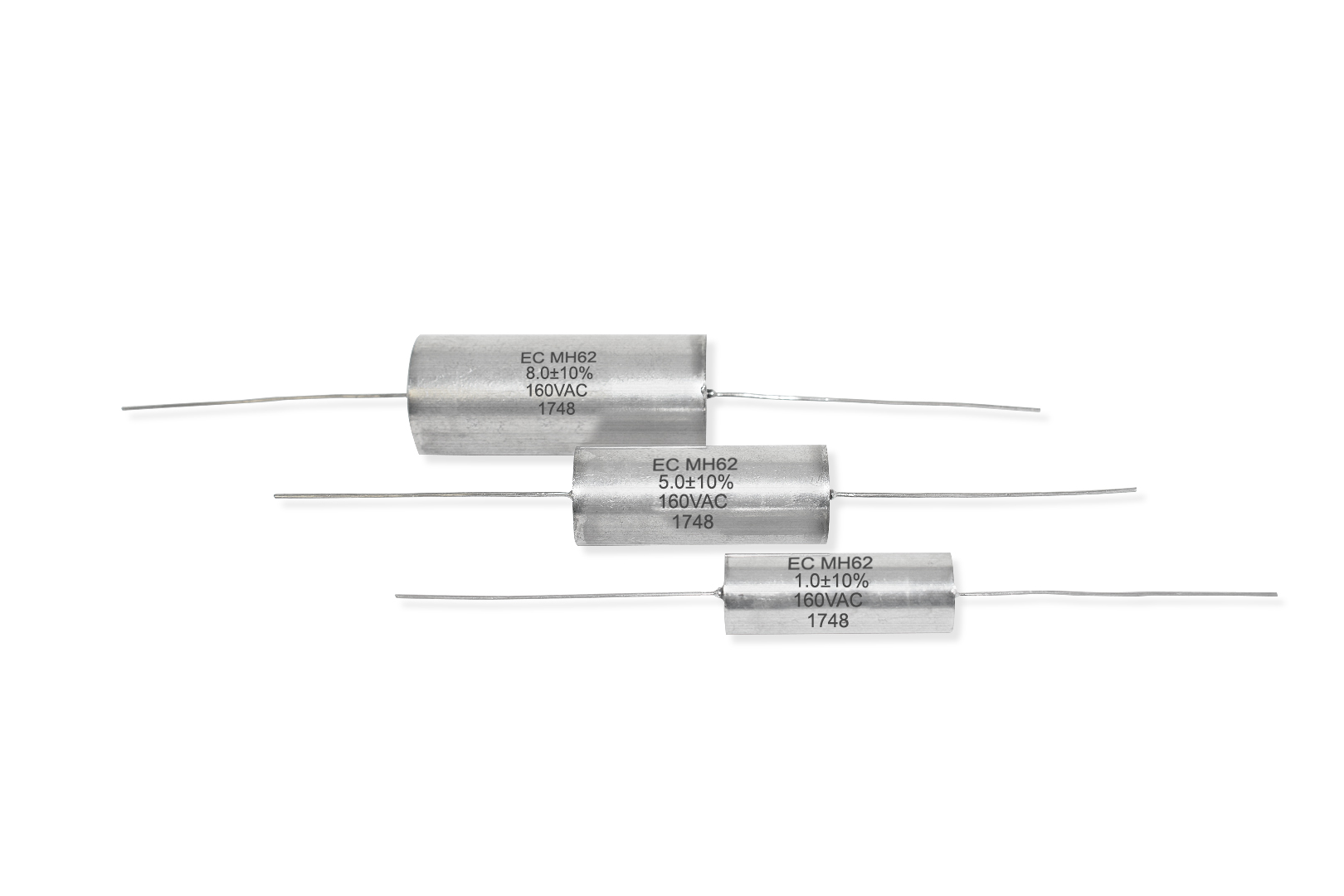

MH Series

Operating Temperature Range: -55°C to +125°C without derating | Capacitance Range: 0.33µF to 8.0µF

Voltage Range VAC: 160VAC | Voltage Range VDC: 250VDC

Application: AC Filter

MP12 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 0.01µF to 10µF

Voltage Range VDC: 150VDC to 600VDC

Application: DC Ripple Filter, Frequency Discriminating

MP3 Series

Operating Temperature Range: -40°C to +85°C | Capacitance Range: 85µF to 1350µF

Voltage Range VDC: 500VDC to 2400VDC

Application: DC Ripple Filter, DC Link, Energy Storage, Inverter

MP80 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 0.5µF to 50µF

Voltage Range VDC: 400VDC to 3300VDC

Application: Snubber, DC Ripple Filter

MP88-PT88

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 0.10µF to 2.5µF

Voltage Range VAC: 460VAC to 920VAC | Voltage Range VDC: 800VDC to 3000VDC

Application: Snubber, Resonant Power, DC Ripple Filter

MU12 Series

Operating Temperature Range: -55°C to +125°C | Capacitance Range: 0.0010µF to 20µF

Voltage Range VDC: 50VDC to 400VDC

Application: High Temperature (>105°C), DC Ripple Filter, Frequency Discriminating

PT12 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 0.0010µF to 2µF

Voltage Range VDC: 100VDC to 600VDC

Application: DC Ripple Filter, Frequency Discriminating

QPL Series

Application:

ST12 Series

Operating Temperature Range: -55°C to +85°C | Capacitance Range: 0.0010µF to 1.8µF

Voltage Range VDC: 50VDC to 400VDC

Application: DC Ripple Filter, Frequency Discriminating

UH3 Series

Operating Temperature Range: -65°C to +125°C | Capacitance Range: 25µF to 325µF

Voltage Range VDC: 600VDC to 1200VDC

Application: High Temperature (>105°C), DC Ripple Filter, DC Link, Energy Storage, Inverter

UL3 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 6.5µF to 300µF

Voltage Range VDC: 500VDC to 2200VDC

Application: DC Ripple Filter, DC Link, Energy Storage, Inverter

UL30 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 50µF to 1600µF

Voltage Range VDC: 300VDC to 1000VDC

Application: DC Ripple Filter, Inverter

UL9 Series

Operating Temperature Range: -40°C to +85°C | Capacitance Range: 380µF to 17100µF

Voltage Range VDC: 700VDC to 3000VDC

Application: DC Ripple Filter, DC Link, Energy Storage, Inverter

UP2 Series

Operating Temperature Range: -55°C to +85°C | Capacitance Range: 2µF to 85µF

Voltage Range VDC: 500VDC to 3000VDC

Application: Coupling/ Decoupling, Snubber, DC Ripple Filter, Inverter

UP3 Series

Operating Temperature Range: -40°C to +85°C | Capacitance Range: 25µF to 2100µF

Voltage Range VDC: 600VDC to 3000VDC

Application: DC Ripple Filter, DC Link, Energy Storage, Inverter

UP37 Series

Operating Temperature Range: -55°C to +105°C | Capacitance Range: 4.7µF to 35µF

Voltage Range VDC: 500VDC to 1500VDC

Application: Coupling/ Decoupling, DC Ripple Filter

UP38 Series

Operating Temperature Range: -55°C to +85°C | Capacitance Range: 3µF to 40µF

Voltage Range VDC: 600VDC to 2400VDC

Application: Coupling/ Decoupling, DC Ripple Filter
